Fire Hydrant Valves

A fire hydrant valve is a controlled outlet valve fitted to a hydrant system that allows firefighters to safely access a pressurised water supply from the mains.

It is used to start, stop, and regulate the flow of water from the hydrant to firefighting equipment such as hoses, standpipes, or pumps. The valve ensures that water can be released in a controlled and safe manner when needed for emergency response.

Fire hydrant valves are designed to remain closed under normal conditions to prevent water loss and are only opened when connected to approved firefighting equipment.

A fire hydrant valve works by controlling the release of pressurised water from a mains water supply so it can be safely used for firefighting.

Under normal conditions, the valve remains closed to keep the water sealed within the hydrant system. When firefighting is required, a standpipe or compatible connector is attached to the hydrant outlet. The valve is then opened using a hydrant key or operating mechanism, allowing water to flow through the outlet and into connected hoses or equipment.

The internal mechanism regulates the opening to ensure a controlled release of water, preventing sudden surges and allowing the system to be safely pressurised. Once operations are complete, the valve is closed again to stop the flow and isolate the hydrant.

Delta Fire supplies a range of fire hydrant valves designed to suit different system layouts and applications. The main types include:

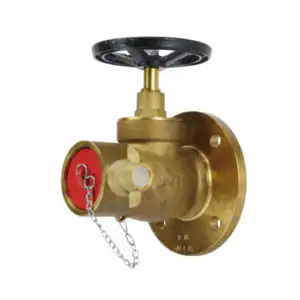

• Straight through (horizontal) hydrant valves
  Water flows directly through the valve in a straight line, ideal for in line pipework with minimal restriction.

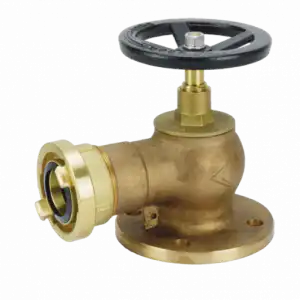

• Right angle hydrant valves
  Designed with a 90 degree outlet, allowing hose connection where space is limited or pipework changes direction.

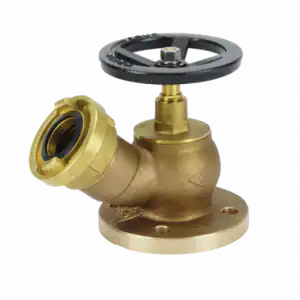

• Oblique hydrant valves
  Angled outlet design that improves flow characteristics compared to right angle valves, commonly used in industrial and offshore systems.

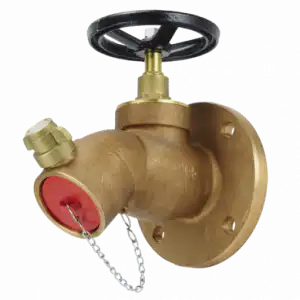

• Bib-nose hydrant valves
  Compact outlet design often used on landing valves and hydrant systems, providing a simple and effective hose connection point.

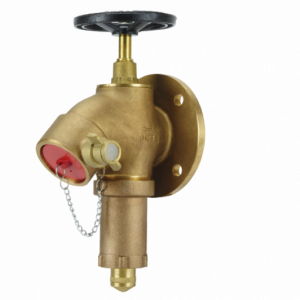

Pressure regulating valves (PRVs)
Used to control and reduce outlet pressure to a safe and consistent level in high pressure systems.

Typical inlet sizes

• 1½” (38 mm)
• 2” (50–52 mm)
• 2½” (65 mm)
• 3” (75 mm)

Inlet connection types

Delta Fire hydrant valves are supplied with different inlet configurations depending on the system:

• Flanged inlets (most common in fixed industrial and marine installations)
  Available in standards such as PN16, BS Table D/E, ANSI 150lb, and JIS where required
• Threaded inlets (used where pipework is screw connection based)
  Common thread types include BSP and other regional thread forms depending on specification

These inlet options allow hydrant valves to be integrated into a wide range of industrial, offshore, marine, and commercial fire protection system.

A fire hydrant valve may be faulty or worn if it shows signs that it cannot safely control or deliver water as intended.

Common signs include difficulty operating the valve, such as stiffness, excessive looseness, or inconsistent movement when opening and closing. Leaks or weeping water around the spindle, bonnet, or outlet are also clear indicators that internal seals or components may be worn.

Other warning signs include reduced or irregular water flow, visible corrosion or physical damage to the body or outlet, and failure to fully shut off or fully open, which can indicate internal wear or obstruction.

In some cases, a valve may appear externally sound but still perform poorly due to internal seat or seal deterioration, which is why regular inspection and maintenance are important.

In many cases, a fire hydrant valve can be repaired rather than fully replaced, depending on the condition of the unit.

Common wear items such as washers, seals, and hand wheels can often be replaced, and Delta Fire holds spare components for hydrant maintenance to support routine servicing and minor repairs. This allows many valves to be restored to full working condition without replacing the entire assembly.

However, if the valve is suffering from significant corrosion, structural damage, or heavy internal wear, replacement is usually the safest and most reliable option. In these cases, repairing the valve may not restore full performance or long term integrity.

Yes, fire hydrant valves can have a direct impact on water flow and pressure performance within a firefighting system.

The internal design of the valve, including the bore size, flow path, and outlet configuration, can influence how efficiently water is delivered. Poorly matched or worn valves can create unnecessary restriction, leading to reduced flow rates and inconsistent performance at the nozzle.

To help control this, Delta Fire supplies pressure regulating valves (PRVs) which are designed to reduce and stabilise outlet pressure to a safe and usable level. This is especially important in high pressure systems where uncontrolled pressure could make hose handling difficult or unsafe.

By maintaining consistent pressure, PRV hydrant valves help ensure predictable flow performance, improved safety, and more effective firefighting operation.
